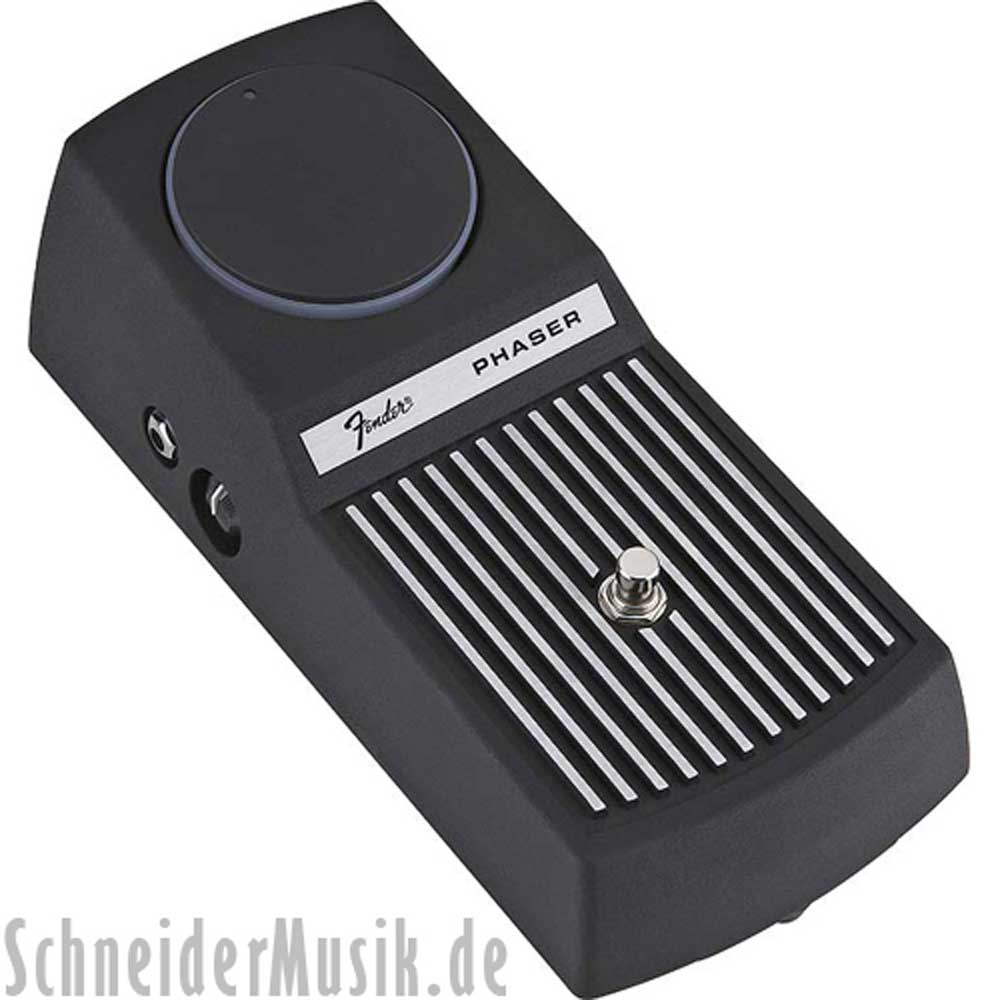

Effects Pedal

• Input Impedance: 470 kOhm
• Nominal Input Level: -20 dBV
• Output Impedance: 4.7 kOhm
• Nominal Output Level: -20 dBV
• Recommended Load Impedance: 50 kOhm or greater
• Power Requirements: 9V DC (center pin = negative); 40 mA minimum
• Controls (knobs) for: Rate, Intensity, Frequency,
• Bypass Switch: true bypass of the phaser effect; turns the phasing effect on-off.
• 9V Power adapter jack
• Power supply: 9V battery, or optional mains adapter (not included)
• Battery compartment

Further information:

• Rate - This knob controls the rate at which the phase shifting occurs. The rate control knob alternately illuminates blue and red at the same rate as the phase shifting.
• Intensity - this knob adjusts the intensity of the Phasing effect.
• Frequency - this knob adjusts what frequencies are affected by the phasing action. Fully counter-clockwise causes the bass frequencies to be affected most by the phasing action, fully clockwise causes the treble frequencies to be most affected by the phasing action.
• Input jack -  plug your guitar (or other audio source) in here. Un-plug the input plug from this jack to turn off the device and save power (very important) when not in use.
• DC Input Jack - plug in a AC-9V DC adaptor into this jack to eliminate the need for batteries.
