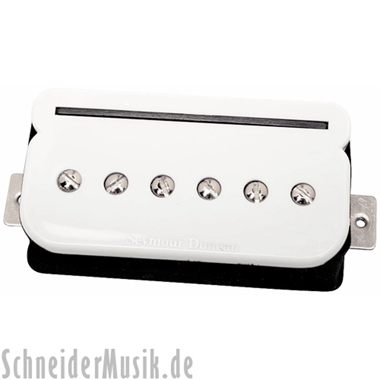

SHPR-2 P-Rails Hot Bridge - Full size Humbucker

• with three distinct modes: Humbucker, P-90, Single-coil
• full, expressive humbucker sound
• bridge model/bridge position
• 2 AlNiCo 8 bar magnets
• with 4-conductor hookup cable
• colour: white
• DC Resistance, serial: 22.43 kOhm
• DC Resistance, only Rail Coil: 8.62 kOhm
• DC Resistance, only P-90 Coil: 13.81 kOhm
• Resonant Peak, serial primary: 2.82 kHz
• Resonant Peak, serial secondary: 6.48 kHz
• Resonant Peak, parallel: 3.88 kHz
• Resonant Peak, only Rail Coil: 3.21  kHz
• Resonant Peak, only P-90 Coil: 6.64 kHz

Pickup for E-Guitars. Ground breaking design allows a full-size humbucker to split to either a real deal P-90 or a traditional single coil. (Available in bridge model, in black, white or cream.)
