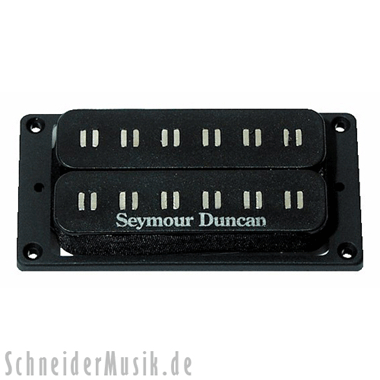

PATB-2 Distortion - Parallel Axis Trembucker

• provides modern high-output sound
• great for Old School Metal, Nu-Metal, Gothic, Garage, Punk, Thrash and other Heavy Rock styles
• bridge model/bridge position
• string spacing: 52.6 mm
• ceramic magnets
• 4-conductor cable
• DC resistance: 21.3 kOhm
• Resonance frequency: 3.9 kHz
• colour: black

Recommended for vibrato-equipped guitars (E-guitars), works especially well with rosewood fingerboards.

A powerful ceramic magnet and over-wound coils give this pickup a huge singing tone with a clear, articulate high-end and plenty of grind on the bottom. Comes with four-conductor hookup cable. Recommended for bridge position. (Often paired with a PA-TB1n Original Parallel Axis Trembucker or PA-STK1n Parallel Axis Stack® in the neck position for versatility.)

The PATB-2 Original is available in only bridge model and black colour.

The Parallel Axis design improves the balance of the strings among, in order to produce an even,
modern sound also with Floyd Rose or similar vibrato-systems. The bridge version (PATB-1b, PATB-2, PATB-3) has trembucker spacing (52.6 mm), the neck pickups (PA-TB1n, PA-STK1n) are traditionally designed for a string spacing of 48.9 mm.
