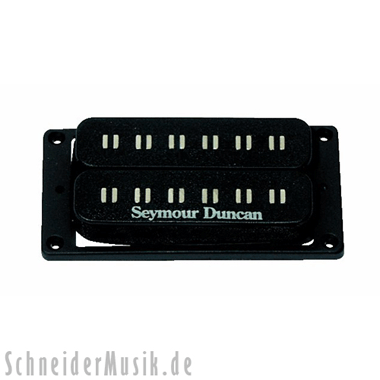

PATB-1b Original - Parallel Axis Trembucker

• provides modern sound
• great for Country, Pop, Classic Rock, Jazz, Blues, Funk und Heavy Rock
• bridge model/bridge position
• string spacing: 52.6 mm
• with 4-conductor cable
• AlNico V magnets
• DC resistance: 15.7 kOhm
• Resonance frequency: 4.5 kHz
• colour: black

Recommended for vibrato-equipped guitars (E-guitars), works especially well with rosewood fingerboards.

This pickup produces a modern Hi-Fi sound. The tone is balanced, sweet, and bluesy with exceptional sustain. More output and mids than the PATB-3b Blues Saraceno model. The more gain you add, the more it sings, making it extremely versatile. The bridge version is high output. The neck version is compensated for tonal balance. Comes with four-conductor hookup cable.

The PATB-1 Original is available in both neck and bridge models, only in black colour.

The Parallel Axis design improves the balance of the strings among, in order to produce an even,
modern sound also with Floyd Rose or similar vibrato-systems. The bridge version (PATB-1b, PATB-2, PATB-3) has trembucker spacing (52.6 mm), the neck pickups (PA-TB1n, PA-STK1n) are traditionally designed for a string spacing of 48.9 mm.
