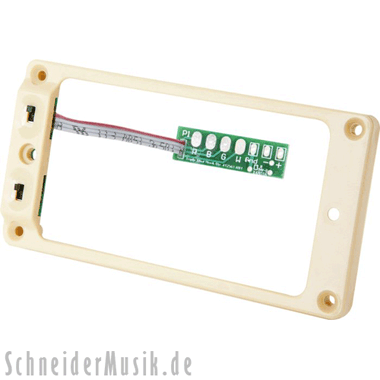

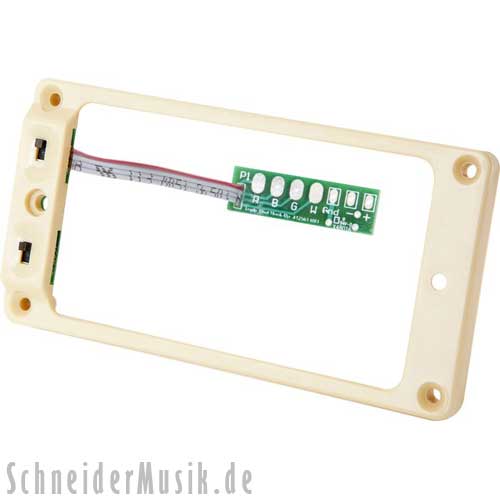

TS-1 Pickup frame - for Trembuckers (flat top)

• mountain ring for (Electric Guitar) pickups
• with 2 integrated switches to access series, parallel and split wirings.
• a body-milling is not required
• colour: cream
• will NOT fit Nickel and Gold covered Trembuckers!

Expand your tonal palette by accessing three unique tones from a trembucker, thanks to this mounting ring that holds two small switches. This "stealth" pickup switching device allows you to access series, parallel and split wirings with a standard trembucker. And it's easy to install. Just solder your pickup leads to a small color-coded circuit board - that's it. Push the two switches towards each other for standard series wiring; away from each other for parallel wiring; and both towards one coil (either one) to shut that coil off.

For use with nearly any trembucker pickups (E-Guitar) with 4-conductor cable: Seymour Duncan or otherwise. Available in black and cream, single or in a set (neck/bridge).

The TS Triple Shot Mounting Ring is available as TS-1 for Trembuckers (flat top), oder als TS-2 for Humbuckers (for Les Paul; carved top).
