Under-Saddle Transducer for acoustic guitars with 3/32" thick bridge saddle
- Active Piezo Pickup with Preamp for mounting under the bridge saddle
- Suitable for nylon and steel strings
- Control for Bass-Boost
- Tone und Volumen control can be used optionally
- 2 sources can be connected, e.g. Piezo + magnetic pickup (steel strings are necessary) or microphone
- Powered by 2x 1.5 V AA batteries
- Made in USA

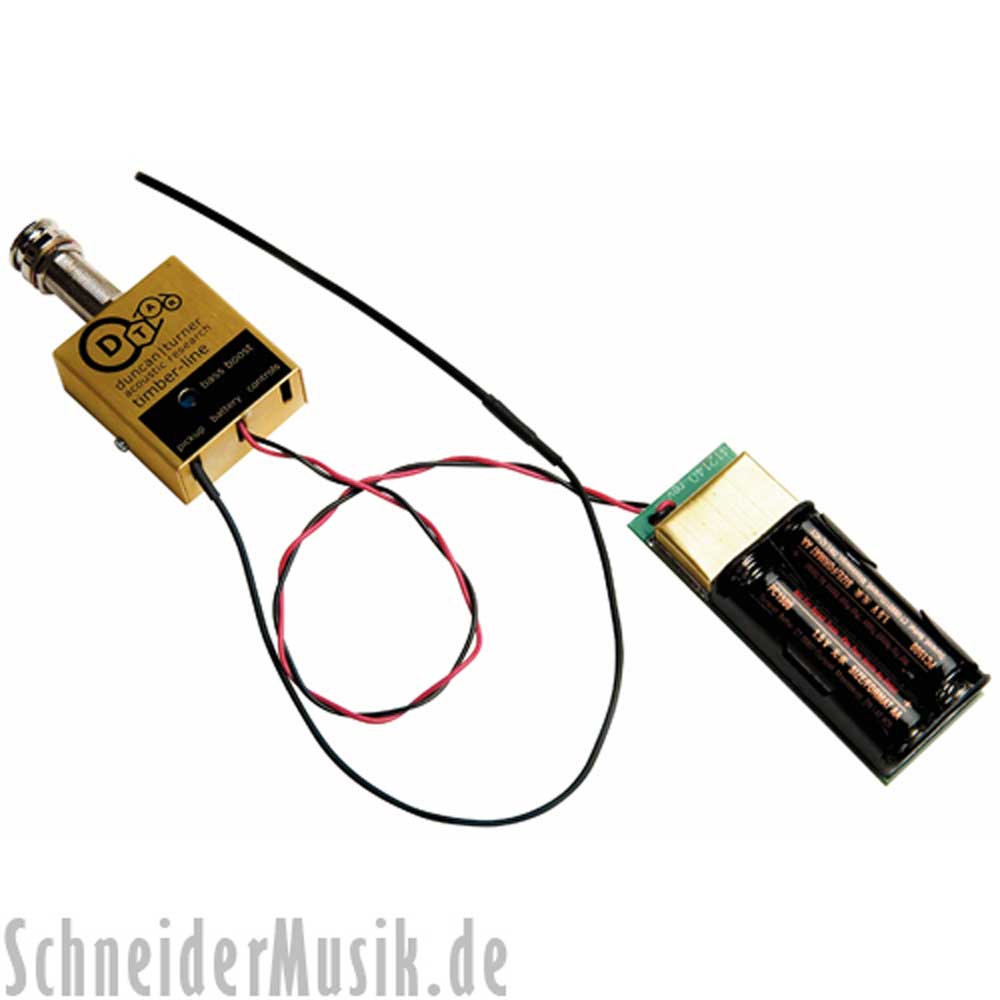

Timber-line is a piezo cable pickup coupled to an 18 volt, low-noise, high input impedance preamp with twice the dynamic range of 9-volt preamps. The increased dynamic range and adjustable bass trim pot gives musicians a more natural and full sound. Timber-line is the perfect piezo pickup system for musicians who want a more complex signature from their acoustic guitar.
Unitary full length pickup acommodates all string spacing, gets a more even response from the guitar's top. Co-axial cable design can get a more complex signature sound of the guitar due to 360 degrees of vibrations along its length. High headroom allows for twice the dynamic range of a 9 V system, hard strumming, and reduces piezo "quackiness". Dual source capability allows the user to combine with a mic, magnetic or soundboard transducer for greater complexity of signal. Easy to install: installation intended for guitar builders and luthier-techs. Adjustable bass trim control simulates the air resonance of a typical acoustic guitar, warms up bottom end. Stereo buffer upgradable, allows buffering a second signal to ensure proper impedance match.
Article number: DTAR.132C
